제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 텅스텐 카바이드 | 타입: | 드릴용 날을 넓히기 |
|---|---|---|---|
| 스레드: | R28, R32, R38, T45 등 | 애플리케이션: | 금속 광산, 보고, 디드로 전기적 공학, 기타 등등. |
| 조금 직경: | 64mm-89mm | 단추 유형: | 소헤리칼과 탄도이고 원추형입니다 |
| 하이 라이트: | 리밍 돔 나선부 버튼 Bit,76mm 리밍 드릴 비트,돌 리밍 드릴 비트 |
||
Description

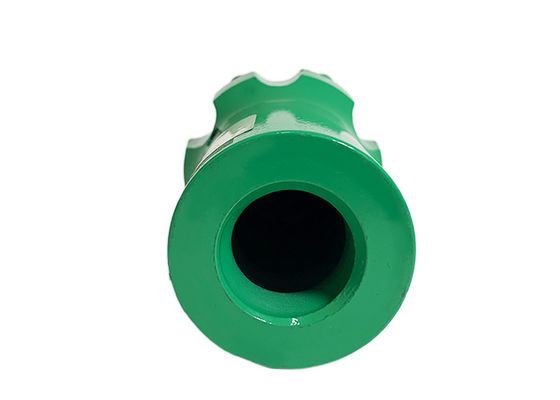

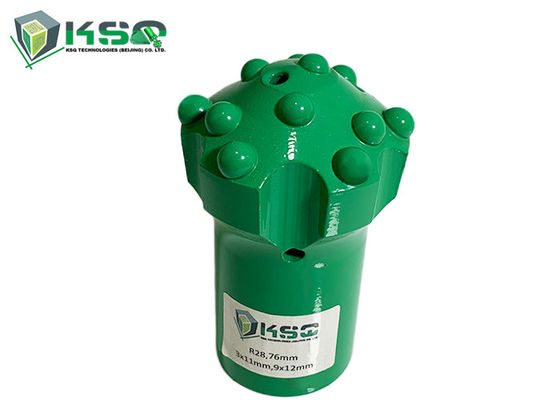

This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.
• Widely used in drifting and tunneling
• R28 thread system
Color: Green,Blue or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R28 Reaming Bit 6
Applications
• Underground mining
• Tunneling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
specification
| Part Number | Bit Diameter (mm) | Bit Diameter (inch) | Front Buttons | Gauge Buttons | Product Code and Brief Description | Angle | Front Flushing | Side Flushing | Weight |
| (No. x mm) | (No. x mm) | Holes | Holes | (kg) | |||||
| 4148300452 | 64 | 2 1/2 | 2x10 | 8x9 | RE1064-6D-R28, R28 Reaming Bit 6° | 35° | - | - | 0.8 |
| 4148300453 | 64 | 2 1/2 | 4x8 | 8x9 | RE1264-6D-R28, R28 Reaming Bit 6° | 25° | - | - | 0.8 |
| 4148300454 | 76 | 3 | 2x11 | 8x11 | RE1076-6D-R28, R28 Reaming Bit 6° | 35° | - | - | 1.2 |
| 4148300455 | 76 | 3 | 4x10 | 8x10 | RE1276-6D-R28, R28 Reaming Bit 6° | 30° | - | - | 1.2 |
| 4148300456 | 89 | 3 1/2 | 4x11 | 8x11 | RE1289-6D-R28, R28 Reaming Bit 6° | 35° | - | - | 1.7 |
| 4148300457 | 89 | 3 1/2 | 4x10 | 8x10 | RE1289-6D-R28, R28 Reaming Bit 6° | 30° | - | - | 1.7 |
