| 원래 장소: | 중국 |
| 브랜드 이름: | MIROC |
| 인증: | ISO |
| 모델 번호: | DTH340 DTH 해머 비트 |
| 최소 주문 수량: | 1 |
|---|---|
| 포장 세부 사항: | 판지 상자 또는 나무 상자 |
| 배달 시간: | 10-25 일 |
| 지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
| 공급 능력: | 달 당 20000 조각 |
| 종류: | 드릴링 장비 | 상태: | 새롭습니다 |
|---|---|---|---|
| 압력: | 고압 / 저압 | 삽입 디자인: | 둥근; 탄도; 비유 |
| 상술: | 76-1000mm | 색: | 요구 |
| 장점: | 고성능 | 상품 이름: | Dth 비트, 락 드릴 비트, Dth 해머 비트 |
| 하이 라이트: | 6 Inch dth hammer bit,DTH340 dth hammer bit,DTH340 bit |
||

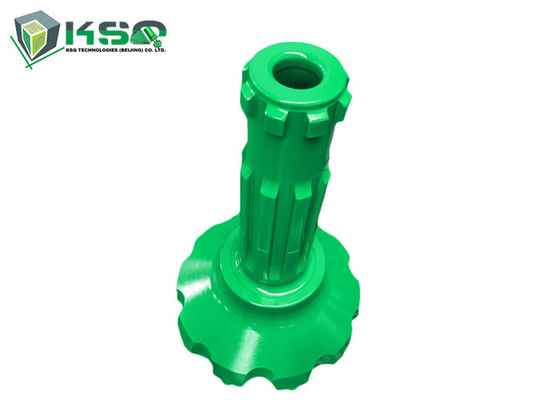

6 Inch DTH340 Mining And Well Drilling Blast Hole DTH Hammer Bit
DTH rock drill bits are in different sizes ranging from 3" to 12".
DTH rock drill bits are available in valveless model and is competent to operate in harsh conditions
DTH rock drill bits have four kinds of button type
Spherical button : good wearing resistance, suited to hard ground, abrasive to very abrasive.
Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasive ground types.
Ballistic button : fast penetration,suited to soft rock, suitable for non abrasive ground.
Color: Green,Blue or Based on Customer requirements
Applications of DTH Bit
• Underground mining
• Tunneling
• Quarry benching operations
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
| HAMMER INCH | BIT DIA(MM) | BIT DIA(INCH) | SHANK |
| 1 | 64MM-76MM | 2 1/2"-3" | BR1 |
| 2 | 76MM-90MM | 3"-3 1/2" | BR2/PAD320 |
| 3 | 85MM-105MM | 3 2/5"-4" | BR3/DHD330/COP32/PAD330 |
| 3.5 | 85MM-110MM | 3 2/5"-4 1/3" | DHD3.5/IR3.5/COP34/QL30/PAD3.5 |
| 4 | 105MM-140MM | 4"-5 1/2" | DHD340/COP44/QL40/SD4/MISSION40/PAD340 |
| 5 | 127MM-200MM | 5"-8" | DHD350/COP54/QL50/SD5/MISSION50/PAD350 |
| 6 | 152MM-254MM | 6"-10" | DHD360/COP64/QL60/SD6/MISSION60/PAD360 |
| 8 | 195MM-350MM | 7.2/3"-13 4/5" | DHD380/COP84/QL80/SD8/MISSION80/PAD380 |
| 10 | 254MM-380MM | 10"-15" | SD10/NUMA100/DHD1100/PAD1100 |
| 12 | 305MM-457MM | 12"-18" | SD12/NUMA120/DHD1120/PAD1120 |
