원래 장소: | 중국 |
브랜드 이름: | MIROC |
인증: | ISO |
모델 번호: | YH65 섕크 어댑터 |
최소 주문 수량: | 1 |
---|---|
가격: | Negotiation |
포장 세부 사항: | 스탠드라드는 패키징을 수출하거나, 특화했습니다 |
배달 시간: | 15-20 일 |
공급 능력: | 달 당 20000pcs |
재료: | 합금 강 | 스레드: | T38, T45 |
---|---|---|---|
가공 유형: | 위조 | 상품 이름: | 정강이 접합기 |
길이: | 500 밀리미터, 700 밀리미터 | 색: | 검거나 주문 제작됩니다 |
하이 라이트: | yh65 드릴 섕크 어댑터,드릴 섕크 어댑터 yh65,합금강 드릴 섕크 어댑터 |

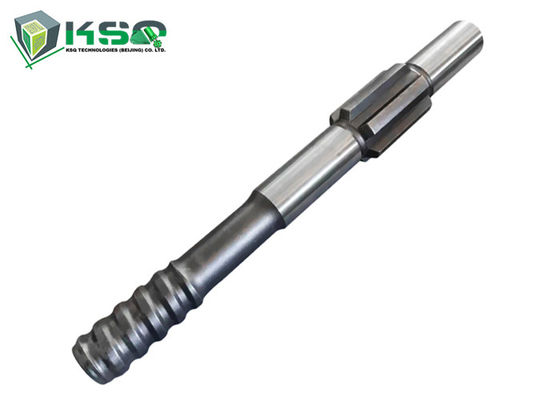

T38 T45 YH65 Alloy Steel Drill Shank Adapter For Ingersoll Rand Bench Drilling
The shank adapters are designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Furukawa drifters, Ingersoll-Rand drifters, Montabert drifters, Secoma Hydrastar drifters, Toyo drifters, Tam rock series drifters, Garden Diver series drifters etc.
Male shank adapters are ideal for drifting, tunneling & extension application where high bending stresses are present, Female shank adapters are used when the drilling space is limited and the total feed length is important.
Specification
Item | Thread | Length | Diameter | Weight | Flushing Tube | Part Number |
mm | mm | kg | mm | |||
Ingersoll Rand YH 65, YH 70 Bench Drilling |
T38 (1 1/2") | 500 | 45 | 5.2 | 19 | 414832563 |
T45 (1 3/4") | 500 | 45 | 5.2 | 19 | 414832564 | |
Ingersoll Rand YH 65 RP Bench Drilling |
T38 (1 1/2") | 700 | 45 | 7.8 | 19 | 414832565 |
T45 (1 3/4") | 700 | 45 | 7.9 | 19 | 414832566 | |
Ingersoll Rand YH 80A Bench Drilling |
T38 (1 1/2") | 500 | 51 | 5.5 | 19 | 414832567 |
T45 (1 3/4") | 500 | 51 | 5.7 | 19 | 414832568 | |
T51 (2") | 500 | 51 | 6.4 | 19 | 414832569 | |
Ingersoll Rand YH 80A RP Bench Drilling |
T45 (1 3/4") | 700 | 51 | 8.8 | 19 | 414832570 |
T51 (2") | 700 | 51 | 9.3 | 19 | 414832571 | |
Ingersoll Rand YH 95 RP, YH 100 RP Bench Drilling |
T51 (2") | 840 | 51 | 11.6 | 23 | 414832572 |
Ingersoll Rand YH 110VRP, Y 135 RP Bench Drilling |
T51 (2") | 900 | 55 | 14.2 | - | 414832573 |
Ingersoll Rand YH 110V, YH 135 Bench Drilling |
T45 (1 3/4") | 728 | 55 | 11.4 | - | 414832574 |
T51 (2") | 728 | 55 | 11.7 | - | 414832575 |
