Name: HQ PQ Diamond Impregnated Core Drill Bit for Exploration Coring Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: 본사 PQ
Price: 508.50 USD
Availability: InStock

홈 제품 소개 락 드릴링 툴

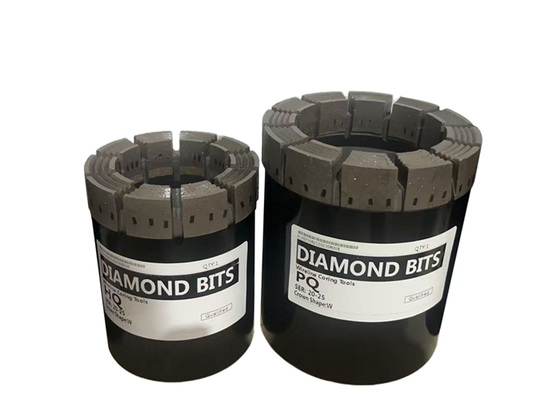

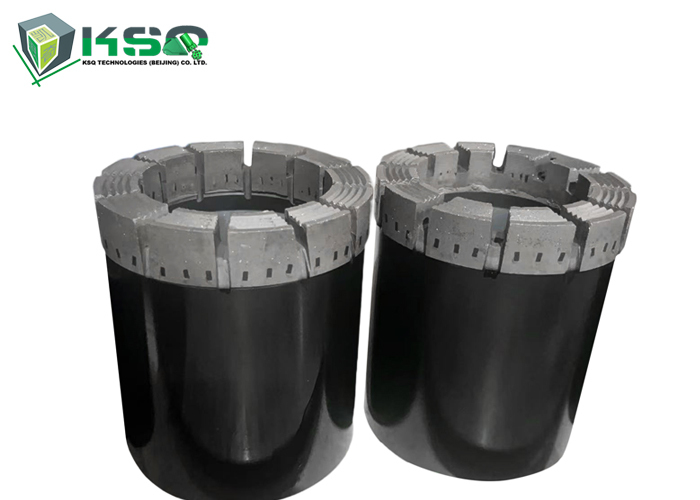

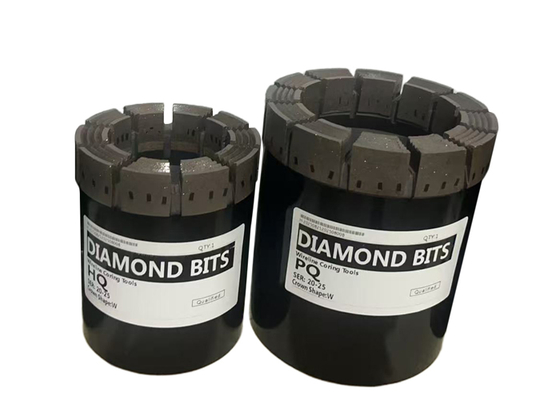

HQ PQ Diamond Impregnated Core Drill Bit for Exploration Coring Drilling

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	MIROC
인증:	ISO
모델 번호:	본사 PQ

결제 및 배송 조건:

최소 주문 수량:	1
배달 시간:	20-30
공급 능력:	3000

접촉

상세 제품 설명

모델 번호:	본사, PQ,	재료:	다이아몬드
용법:	우물 뚫기, 광산 탐사 뚫기	사용자 정의:	표준 또는 사용자 정의
유형:	코어 드릴 비트	산업:	지질조사
재산:	스며들게 하는	연결:	남성/여성
강조하다:	diamond impregnated core drill bit , exploration coring drill bit , rock drilling core bit with warranty

HQ PQ Diamond Impregnated Core Drill Bit for Exploration Coring Drilling

Product Specifications

Attribute	Value
Model NO	HQ, PQ
Material	Diamond
Usage	Well Drilling, Mining Exploration Drilling
Customized	Standard or Customized
Type	Core Drill Bit
Industry	Geological Survey
Property	Impregnated
Connection	Male/Female

Product Description

Impregnated diamond core bits are widely used in mining and geological surveys for drilling into hard rock formations. These core bits are designed to provide efficient and precise drilling in challenging conditions.

Diamond Impregnation: Manufactured by embedding industrial-grade diamonds into a matrix of metal powder and binder, ensuring even distribution for consistent cutting performance.
Hard Rock Drilling: Primarily used for drilling into hard rock formations like granite, basalt, and limestone where conventional methods may struggle.
Cutting Efficiency: Diamond impregnation enables effective grinding through hard rock, with matrix material supporting diamonds and channeling away rock particles.
Core Recovery: Designed to maximize recovery of intact core samples for accurate geological analysis and ore reserve estimation.
Durability: Engineered to withstand high rotational speeds and abrasiveness, with lifespan varying by rock conditions and drilling techniques.
Water Cooling: Typically uses water as coolant and lubricant to reduce friction, remove cuttings, and prevent overheating.

Size Specifications

Size	Outside Diameter	Inside Diameter
AQ	1.880/1.870 Inch 47.75/47.50 mm	1.607/1.057 Inch 27.1/26.85 mm
BQ	2.350/2.340 Inch 59.69/59.44 mm	1.438/1.428 Inch 36.52/36.27 mm
NQ	2.970/2.960 Inch 75.44/75.19 mm	1.880/1.870 Inch 47.75/47.50 mm
HQ	3.770/3.755 Inch 95.76/95.38 mm	2.505/2.495 Inch 63.63/63.38 mm
PQ	4.815/4.795 Inch 122.30/121.80 mm	3.350/3.340 Inch 85.09/84.84 mm
