| 원래 장소: | 중국 |
| 브랜드 이름: | MIROC |
| 인증: | ISO |
| 모델 번호: | PR54R RC 해머 드릴 비트 |
| 최소 주문 수량: | 1 |
|---|---|
| 배달 시간: | 20-30 |
| 공급 능력: | 3000 |
| 제조 공정: | 단조 | 재료: | 합금 강철 |
|---|---|---|---|
| 이점: | 고성능 | 색상: | 요청에 따라 |
| 부품 이름: | DTH 드릴 비트 | 용법: | 구멍 drlling |
| 강조하다: | RC hammer drill bit for DTH hammer,reverse circulation drill bit for rock drilling,PR54R RC hammer bit with warranty |
||
| Attribute | Value |
|---|---|
| Manufacturing Process | Forging |
| Material | Alloy Steel |
| Advantage | High Performance |
| Color | Per Request |
| Parts Name | DTH Drill Bits |
| Usage | Hole Drilling |

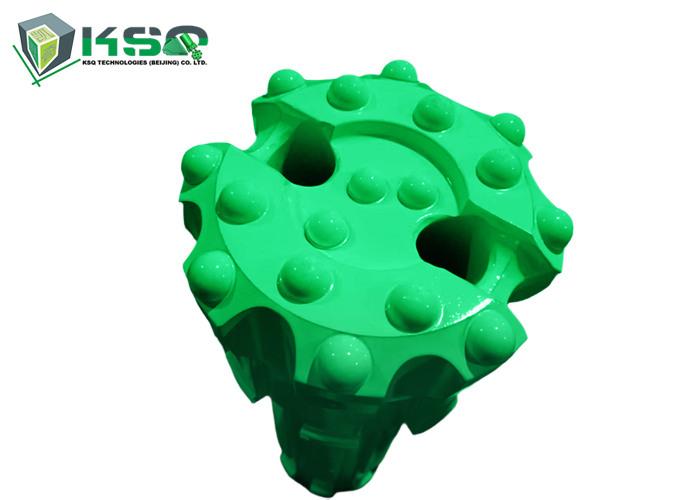

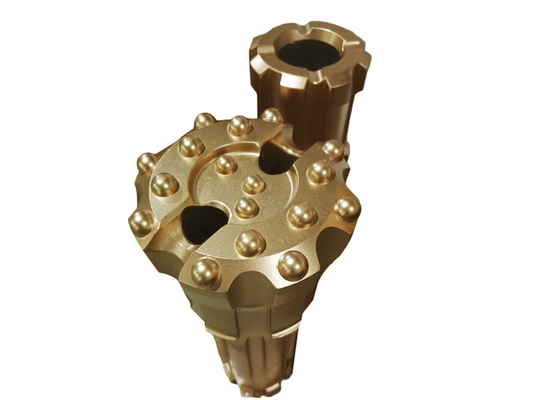

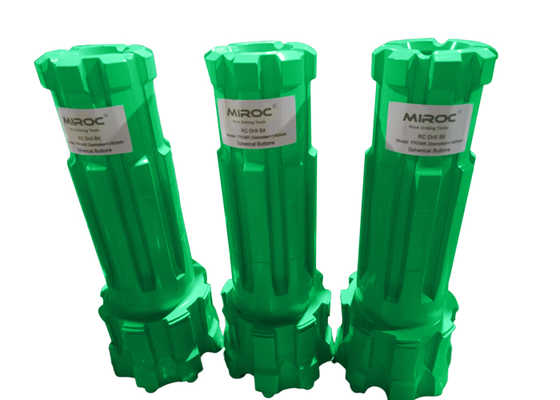

RC series reverse circulation DTH Hammer is mainly used for deep exploration drilling and stope ore grade control. This reverse circulation drill bits are widely used in the following application fields:
Specifically designed to work with RC Hammers.
Other sizes available upon customer request. Customization available.
| Diameter mm | Diameter inch | No x Button diameter | Button angle | Flushing holes | Shroud Dia mm | Weight (kg) | Part No | |
|---|---|---|---|---|---|---|---|---|
| 136 | 5 3/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 134 | 19.0 | PR54-136 |
| 140 | 5 1/2 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 138 | 19.3 | PR54-140 |
| 143 | 5 5/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 141 | 19.5 | PR54-143 |
| 146 | 5 3/4 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 144 | 19.6 | PR54-146 |
