| 원래 장소: | 중국 |
| 브랜드 이름: | MIROC |
| 인증: | ISO |
| 모델 번호: | R32-51mm |
| 최소 주문 수량: | 1 |
|---|---|
| 배달 시간: | 20-30 |
| 공급 능력: | 3000 |
| 유형: | 암석 드릴링 비트 | 재료: | 합금 강철 및 텅스텐 카바이드 |
|---|---|---|---|
| 용법: | 록 드릴링 | 수업: | 중경질 |
| 신청: | 표류 및 터널링 | 비트 얼굴: | 평평한 얼굴 비트, 볼록한 얼굴 비트, 오목한 얼굴 비트 |
| 프로세스: | 단조+가공+표면처리 | 버튼 모양: | Spherical/Ballistic/parabolic/sharp/falt 보턴 |
| 포트 홀: | 요청으로 | ||
| 강조하다: | R32 retract rock drill bit,51mm rock drilling tools,custom retract drill bit |
||

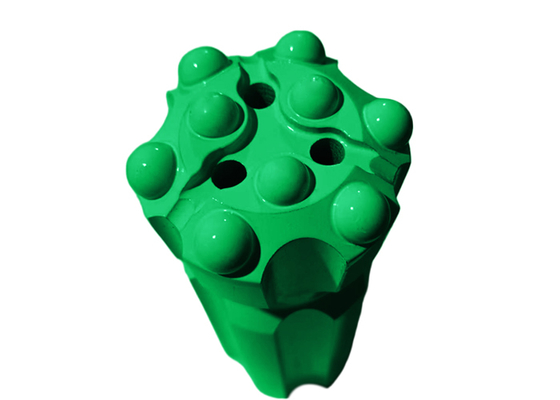

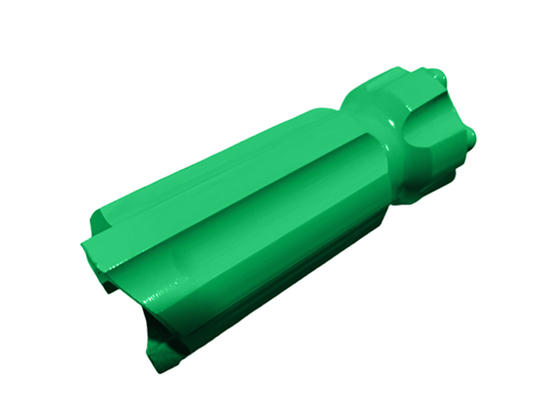

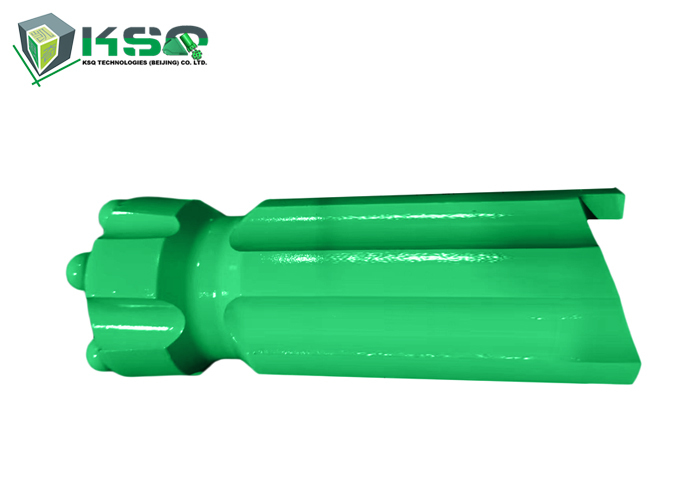

R32 51mm thread button bit is used for tunneling and underground mining, which is very cost effective when compared to other famous brands. Our R32 button bit is made with high quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
According to different drilling applications, we have different designs to meet customers' needs with good quality and competitive pricing.
| Thread | Diameter Range | Skirt Design | Face Design | Button Design |
|---|---|---|---|---|
| R22 | 35 - 45mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R25 | 33 - 57mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R28 | 36 - 51mm | Normal | Flat Face Drop Centre |
Hemispherical Ballistic |
| R32 | 41 - 89mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| R35 | 48 - 51mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| R38 | 64 - 102mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T38 | 57 - 102mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T45 | 70 - 127mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T51 | 76 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| T60 | 89 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| ST58 | 89 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| GT60 | 93 - 140mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
| ST68 | 102 - 152mm | Normal Retrac |
Flat Face Drop Centre |
Hemispherical Ballistic Conical |
