Name: DTH Hammer Rod Pipe Box Pin Adapters API Reg DTH Adapter
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: 어댑터-2-38“-박스-핀
Price: 508.50 USD
Availability: InStock

홈 제품 소개 락 드릴링 툴

DTH Hammer Rod Pipe Box Pin Adapters API Reg DTH Adapter

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	MIROC
인증:	ISO
모델 번호:	어댑터-2-38“-박스-핀

결제 및 배송 조건:

최소 주문 수량:	1
배달 시간:	20-30
공급 능력:	3000

접촉

상세 제품 설명

모델 번호.:	해머 어댑터	재료:	탄소강
지름:	76mm/89mm/102mm/114mm/127mm/140mm	생크 어댑터:	CIR/DHD/M/Ql/SD
길이:	30cm, 50cm,	유형:	드릴 로드용 어댑터
강조하다:	DTH hammer rod adapter , API reg DTH pipe adapter , rock drilling box pin adapters

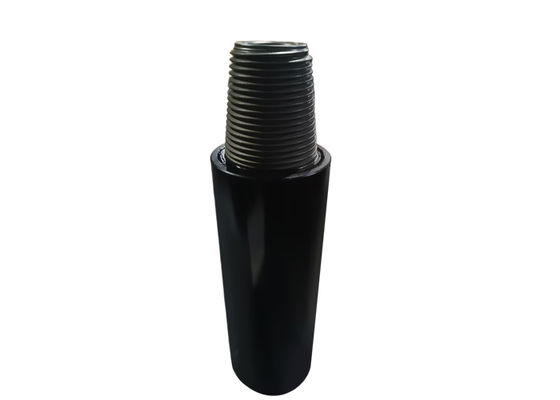

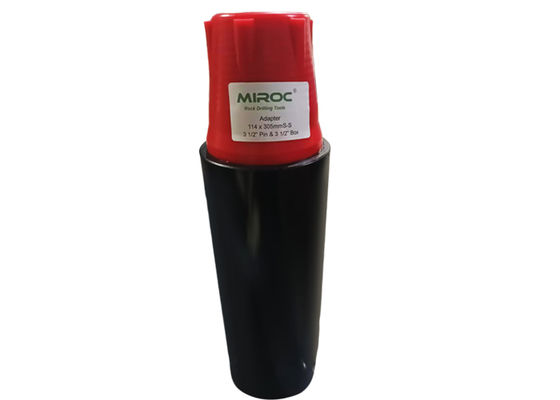

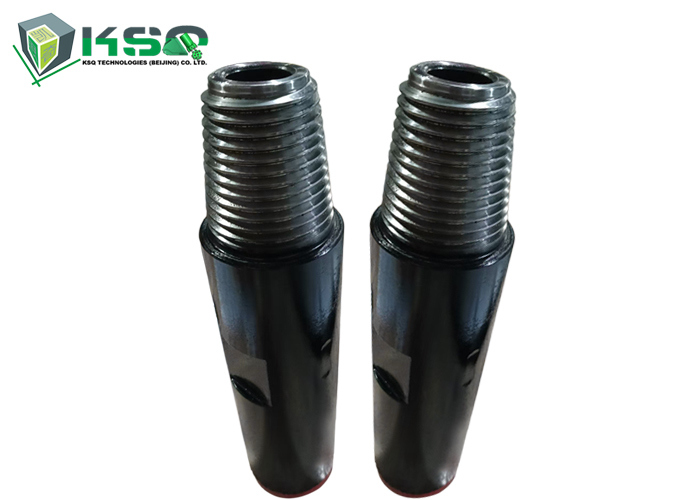

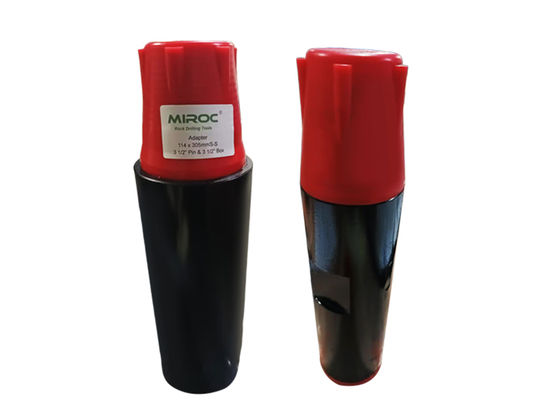

DTH Hammer Rod Pipe Box Pin Adapters API Reg DTH Adapter

Product Description

The adaptor subs are used for connecting different size of rods or casings.

Adaptors are made of high quality alloy steel, now we have rod sub adapters include Box to Box (female to female), Box to Pin (Female to Male), Pin to Pin (Male to Male) in different size and thread.

Specification

Female A	Male B	Diameter A (mm)	Diameter B (mm)	Length (mm)	Wrench flat (mm)	Weight (kg)	Part Number
2 3/8"API Reg	2 3/8"API Reg	77	77	140	65	4	4148301570
2 3/8"API Reg	2 3/8"API Reg	90	90	140	65	5.5	4148301571
2 3/8"API Reg	2 3/8"API Reg	102	102	130	76	7.8	4148301572
2 3/8"API Reg	2 3/8"API Reg	90	90	144	65	5.5	4148301573
2 3/8"API Reg	2 3/8"API IF	95	95	130	65	8	4148301574
2 3/8"API Reg	2 7/8"API Reg	90	102	120	95	10.5	4148301575
2 3/8"API IF	3 1/2"API Reg	90	90	164	65	6.8	4148301576
2 7/8"API Reg	2 3/8"API Reg	90	90	154	65	6.5	4148301577
2 7/8"API Reg	2 3/8"API Reg	90	115	120	95	11	4148301578
3 1/2"API Reg	3 1/2"API Reg	115	115	219	95	12.5	4148301579
3 1/2"API Reg	2 3/8"API IF	115	115	160	95	10.5	4148301580
3 1/2"API Reg	2 7/8"API Reg	115	115	160	95	10.8	4148301581
3 1/2"API Reg	2 7/8"API IF	115	115	160	95	10.8	4148301582
3 1/2"API Reg	3 1/2"API Reg	115	115	160	95	10.5	4148301583
3 1/2"API Reg	4 1/2"API Reg	146	146	132	120	16.5	4148301584
4 1/2"API Reg	3 1/2"API Reg	146	115	235	95	19	4148301585
F48×10	F42×10	59	59	203	40	-	4148301586
F48×10	F48×10	59	59	203	40	-	4148301587
F48×10	2"API Reg	59	59	203	40	-	4148301588
