Name: 133mm Diameter RC45 DTH Bit - Alloy Steel Reverse Circulation Hammer Drill Bit for High Performance Rock Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: RC45 HD
Price: 508.50 USD
Availability: InStock

홈 제품 소개 락 드릴링 툴

133mm Diameter RC45 DTH Bit - Alloy Steel Reverse Circulation Hammer Drill Bit for High Performance Rock Drilling

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	MIROC
인증:	ISO
모델 번호:	RC45 HD

결제 및 배송 조건:

최소 주문 수량:	1
배달 시간:	20-30
공급 능력:	3000

접촉

상세 제품 설명

제조 공정:	단조	재료:	합금강
광산 종류:	채광	이점:	고성능
색상:	요청에 따라	사양:	3인치~5.5인치
표면 처리:	세련
강조하다:	133mm Diameter RC45 DTH Bit , Alloy Steel Reverse Circulation Hammer Drill Bit , High Performance Rock Drilling Spare Parts

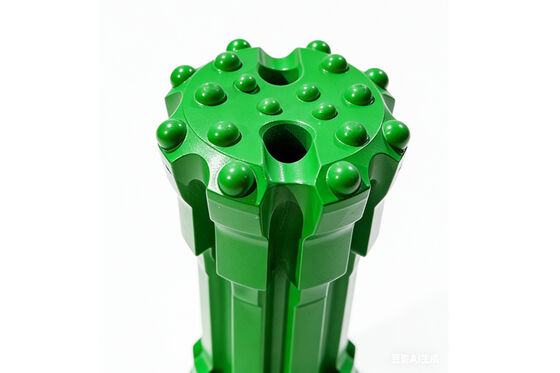

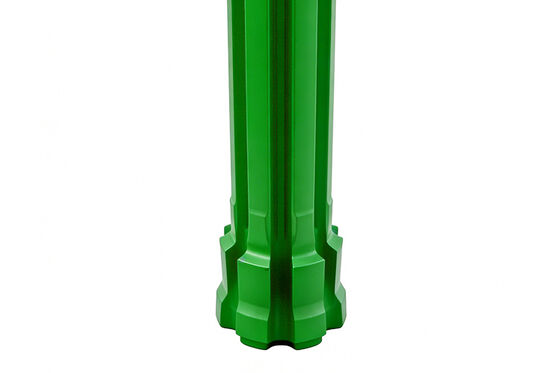

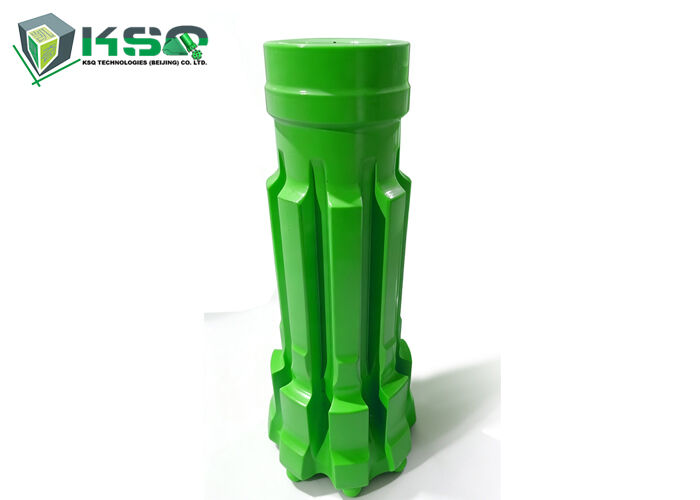

133mm RC45 HD Reverse Circulation Hammer Drill Bit

High-performance drilling spare parts for rock drilling machines and DTH bits

Reverse Circulation Drilling Technology

Reverse Circulation (RC) drilling utilizes dual wall drill rods consisting of an outer drill rod and inner tube. The hollow inner tubes enable continuous, steady transport of drill cuttings back to the surface using compressed air, making this the preferred method for initial exploration.

Key Features & Advantages

Optimized internal structure based on extensive hammer experience, ensuring fast, smooth drilling with continuous sampling
Simple internal design with high-rigidity components for extended service life and easy maintenance
Integrative collection tube design allows replacement without disassembling the hammer, featuring carburizing treatment for superior abrasion resistance
Patented drill bit design enables drilling different hole sizes with the same hammer, preventing sample contamination
Effective performance in challenging conditions including loose soil, hard rock, and water-rich environments

RC45 Bits Specifications

Diameter (mm)	Diameter (inch)	No. x Button Diameter (mm)	Button Angle	Flushing Holes	Shroud Dia (mm)	Weight (kg)	Part No.
133	5 1/4	8 x 16mm	35	2	95.5	15.1	RC45-133
136	5 3/8	8 x 16mm	35	2	95.5	15.1	RC45-136
140	5 1/2	8 x 16mm	35	2	95.5	15.5	RC45-145

Available RC Bit Sizes

3" RC Bits: Diameter (86mm-102mm), shank (RE531)
4" RC Bits: Diameter (114mm-127mm), shank (RE004, RE004R)
4.5" RC Bits: Diameter (121mm-133mm), shank (RE542, RE543)
5" RC Bits: Diameter (113mm-146mm), shank (RE545, PR40)
5.5" RC Bits: Diameter (133-146mm), shank (RE547, PR52, PR54, RC45)
Custom sizes available upon customer requirements

Applications

Reverse circulation drilling is ideal for geological exploration and mineral sampling. The system's simple internal structure with high-rigidity components ensures long service life and easy maintenance. The integrative collection tube design allows replacement without disassembly, while carburizing treatment provides excellent abrasion resistance. The patented bit design enables drilling multiple hole sizes with the same hammer while preventing sample contamination.

Why Choose Our Products

High-quality raw materials with premium hardening procedures for extended service life
Complete production chain ensuring stable manufacturing and prompt delivery
Experienced senior technicians and engineering team
Long-term experienced workers and engineers
Quick and efficient customer service
Attention to customer concerns and requirements
Customization services available
