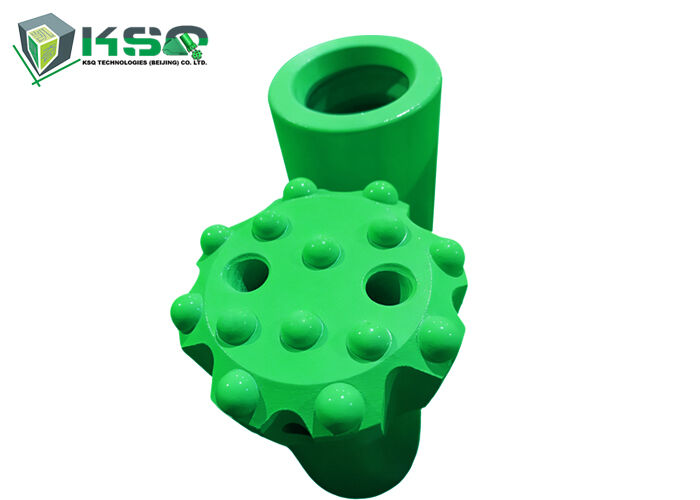

Name: T45 High Manganese Steel Rock Drill Button Bit with Tungsten Carbide Buttons for 76mm-89mm Mining and Tunneling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T45
Price: 508.50 USD
Availability: InStock

홈 제품 소개 락 드릴링 툴

T45 High Manganese Steel Rock Drill Button Bit with Tungsten Carbide Buttons for 76mm-89mm Mining and Tunneling

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	MIROC
인증:	ISO
모델 번호:	T45

결제 및 배송 조건:

최소 주문 수량:	1
배달 시간:	20-30
공급 능력:	3000

접촉

상세 제품 설명

색상:	맞춤형	재료:	고망간강
애플리케이션:	광산이나 터널	상태:	새로운
적용산업:	에너지 및 광업	무게(KG):	4.6
강조하다:	High Manganese Steel Button Bit , 76mm-89mm Rock Drill Button Bit , Tungsten Carbide Buttons Button Bit

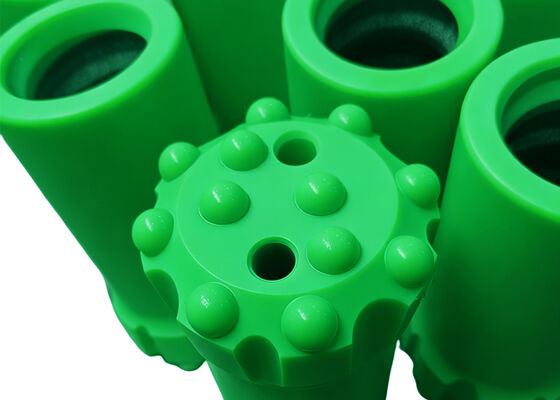

T45-76mm、89mm Rock Drill Button Bit

T45 button bits are high-performance top hammer tools designed for bench drilling, underground long-hole drilling, and tunneling applications. Available in diameters from 76mm to 127mm, these bits feature hardened tungsten carbide buttons mounted on high-quality alloy steel bodies, delivering optimized penetration rates in hard and abrasive rock formations.

Key Features and Specifications

Diameter Range: Common sizes include 76mm, 89mm, and 102mm
Thread Type: T45 (45mm thread), compatible with extension rods (MF rods)
Button Types: Spherical/Dome buttons for hard, non-abrasive rock or Ballistic buttons for softer, abrasive rock
Face Designs: Standard, drop-center, and retrac configurations for various drilling conditions

Face Design Options

Flat Face: Optimal for hard rock formations, providing stability and high penetration rates
Drop Center: Ideal for straight hole drilling applications
Retrac: Facilitates easier extraction of drill strings in broken or fractured ground conditions

Applications

Ideal for construction projects, quarry operations, and mining applications including bench drilling and long-hole drilling in various geological conditions.

Performance Advantages

Increased Productivity: Engineered for faster penetration rates and improved drilling efficiency
Extended Service Life: High-quality carbide construction ensures minimal energy loss and wear resistance up to 5-6 times better than conventional tools
Optimal Energy Transfer: Specialized button designs ensure maximum impact energy transfer to the rock surface

Technical Specifications

Bit Diameter (mm)	Bit Diameter (inch)	Front Buttons (No. x mm)	Gauge Buttons (No. x mm)	Angle	Front Flushing Holes	Side Flushing Holes	Weight (kg)
70	2 3/4	4x11	8x11	40°	2	-	2.3
70	2 3/4	3x11, 1x19	6x11	35°	3	-	2.2
70	2 3/4	4x10, 1x10	8x11	35°	4	-	2.2
76	3	4x11	8x11	40°	2	-	2.6
76	3	5x11	8x12	35°	2	1	2.6
76	3	3x11, 1x11	6x13	35°	3	-	2.4
76	3	4x11, 1x11	8x12	35°	4	-	2.6
89	3 1/2	4x13	8x13	40°	2	-	4.6
89	3 1/2	6x11	8x12	35°	2	-	4.6
89	3 1/2	3x11, 2x11	6x13	35°	3	1	4.1
89	3 1/2	4x11, 1x11	8x12	35°	4	-	4.6
89	3 1/2	4x13, 1x13	8x13	35°	4	-	4.6
102	4	5x14	8x14	40°	2	-	5
102	4	6x13	8x16	40°	2	1	5
102	4	3x13, 2x13	6x14	35°	3	1	4.5
102	4	4x13, 1x13	8x14	35°	4	-	4.5
102	4	4x13, 2x13	8x13	35°	4	1	4.5
