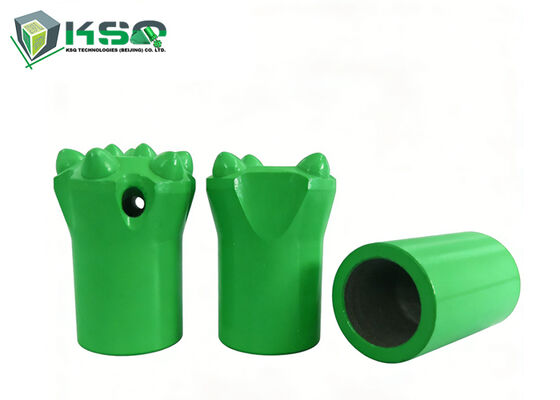

Name: High-efficiency 26-41mm Diameter Taper Drill Bit for Small Hole Drilling in Mining Applications
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: 4°, 6°, 7°, 11°, 12°
Price: 8.5 USD
Availability: InStock

홈 제품 소개 락 드릴링 툴

High-efficiency 26-41mm Diameter Taper Drill Bit for Small Hole Drilling in Mining Applications

제품 상세 정보:

브랜드 이름:	MIROC
인증:	ISO
모델 번호:	4°, 6°, 7°, 11°, 12°

결제 및 배송 조건:

최소 주문 수량:	1
가격:	8.5
배달 시간:	20-30
공급 능력:	3000

접촉

상세 제품 설명

시리즈:	테이퍼 버튼 비트	이점:	고효율
품질:	고품질	색상:	고객의 요구 사항
애플리케이션:	석탄 시추	용법:	작은 구멍 드릴링

Product Name: Taper Drill Bit

Key Features

Tapered design allows bit change without changing the drill rod
Cross-type taper bit is preferred for minimizing hole deviation in small-hole drilling
Smaller taper angle prevents bit spinning (affects "knock-off" index)
Suitable for drifting and tunneling

Technical Specifications

Parameter	Details
Taper Degree	4°, 6°, 7°, 11°, 12°
Diameter	26mm – 41mm (1" – 1 3/5")
Drill Bit Type	Chisel bit, Button bit, Cross bit
Carbide Insert Shape	Spherical, Ballistic
Button Bit Skirt Design	Short skirt, Long skirt
Chisel Bit Subtypes	Standard chisel, Oblique chipways, Flat chipways, Oblique flat chipways
Material	High-strength alloy steel bar + Tungsten carbide
Color	Green, Blue, Gold, Black (or customized)

Applications

Small-hole rock drilling
Custom designs available for specific applications

Small HoleDrilling Tools	Taper Degree	The NumberOf Button	Bit Dia.(mm)	Skirt	Weight(kg)
Tapered		4	32-42	Short Skirt	0.24-0.43
		6	34	Short Skirt	0.29
	7°	7	32-42	Short Skirt	0.26-0.43
		7	32-41	Long Skirt	0.30-0.42
		4	32-40	Short Skirt	0.24-0.40
	11°	5	38-40	Short Skirt	0.39-0.40
		6	33-36	Short Skirt	0.25-0.36
		7	32-41	Short Skirt	0.24-0.41
		7	32-41	Long Skirt	0.30-0.42
		8	33-35	Long Skirt	0.31-0.35
	12°	4	28-30	Short Skirt	0.20-0.22
		5	28-30	Short Skirt	0.20-0.22
		6	30-38	Short Skirt	0.22-0.40
		7	32-38	Short Skirt	0.24-0.40
		7	32-41	Long Skirt	0.30-0.42
		8	33-35	Long Skirt	0.31-0.35
